Old 11-04-2019, 09:27 PM   #1
Colorado350
Senior Member

Colorado350's Avatar

Join Date: Oct 2019
Posts: 102
Smile What did you do to your camper today?

This Forum is definitely smaller than some but I thought it would be good to have a thread regarding:

MODIFICATIONS WEVE DONE TO OUR CAMPERS. Things that weve done that the factory should have done or things that we came up with to make it work better for our individual needs.

We all like pictures so post them up too.
__________________
John
The sheep always complain about the Sheepdogs UNTIL the Wolves show up then they beg for help!
Colorado350 is offline   Reply With Quote
Old 11-04-2019, 10:13 PM   #2
Colorado350
Senior Member

Colorado350's Avatar

Join Date: Oct 2019
Posts: 102
Default 23 fbrl mods

I recently purchased a 2008 Gulfstream Innsbruck Ultra lite. I added 2-30# propane tanks but wanted them separated, 1 on each side. I welded in new tank brackets for each tank. I centered the batteries with a new box, wiring and ventilation hose/vent. I also put in expanded steel grating on the bottom of the storage area. I also cleaned up the wiring, centrally located the primary fuses and added a battery kill switch to completely isolate the batteries from the camper.

I put new tires on it too, I went from 205/75/15 Load C to 225/75/15 Load E. The camper follows great with absolutely no sway.

Heres some pictures:
__________________
John
The sheep always complain about the Sheepdogs UNTIL the Wolves show up then they beg for help!
Colorado350 is offline   Reply With Quote
Old 11-10-2019, 10:57 PM   #3
Colorado350
Senior Member

Colorado350's Avatar

Join Date: Oct 2019
Posts: 102
Default

Wow, nobody works on their camper or wants to post up the work they did??
I don’t know what to think...
__________________
John
The sheep always complain about the Sheepdogs UNTIL the Wolves show up then they beg for help!
Colorado350 is offline   Reply With Quote
Old 03-28-2020, 09:37 PM   #4
Colorado350
Senior Member

Colorado350's Avatar

Join Date: Oct 2019
Posts: 102
Default Solar Installation

I decided on Renogys Premium 200W kit with MPPT controller. Im still buttoning up the installation, the weather turned but everything is running.

The panels are 100W Premium Monocrystalline, the 20A MPPT Controller is Bluetooth compatible and able to handle up to 400W or 2 more panels. Im running dual 6V Duracell batteries. I used a hole saw to cut through the roof, and used butyl tape under weatherproof cable cover. Im going to secure the cables on the roof with Eternalbond tape when the weather dries.

The Controller has to be powered up BEFORE hooking up the panels and disconnected from the panels before disconnecting the batteries. I opted to add switches for the panels and the batteries to make that process easier.
Attached Images
File Type: jpg C0A4DCCA-1FBD-4641-8C47-6629313D68A3.jpg (285.8 KB, 1 views)
File Type: jpg 0A23BE2B-B8D5-4FD4-820E-EE800B6F9988.jpg (163.2 KB, 1 views)
File Type: jpg 8E78B800-34E7-4213-9397-07CD462E1EE6.jpg (199.6 KB, 0 views)
__________________
John
The sheep always complain about the Sheepdogs UNTIL the Wolves show up then they beg for help!
Colorado350 is offline   Reply With Quote
Old 03-28-2020, 11:59 PM   #5
Leisure Time Larry
Member

Leisure Time Larry's Avatar

Join Date: Nov 2017
Posts: 68
Default

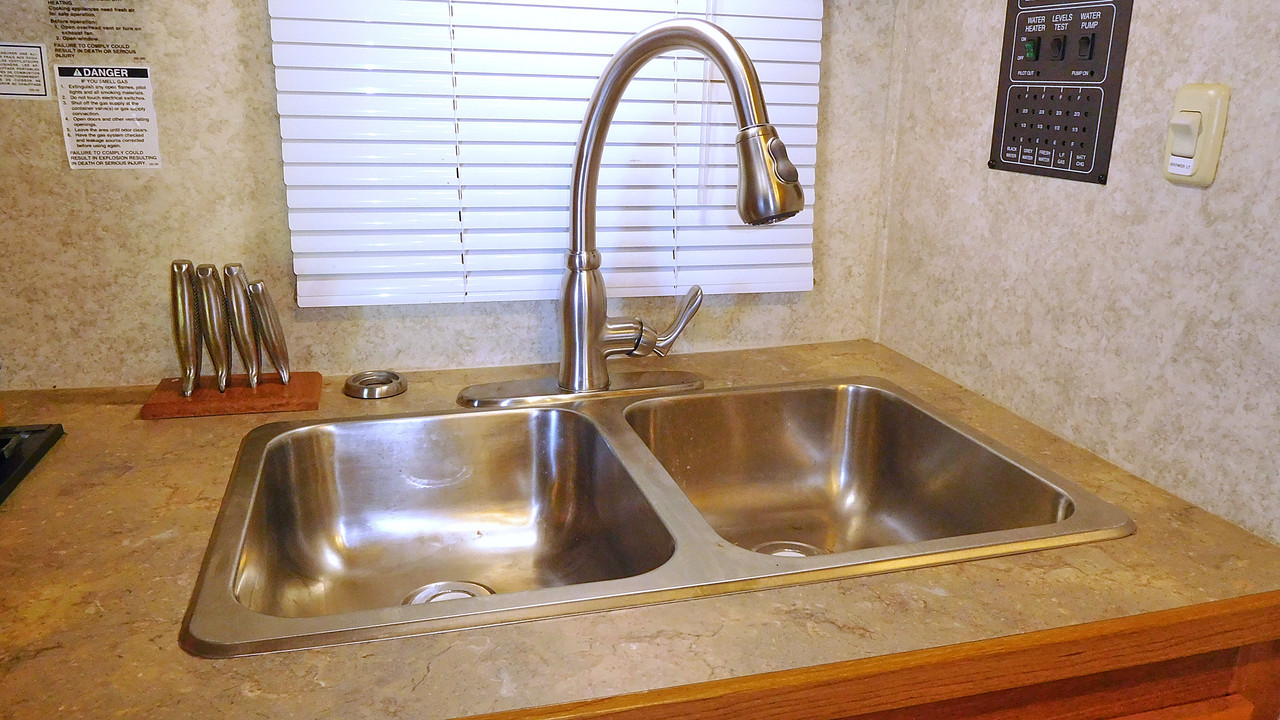

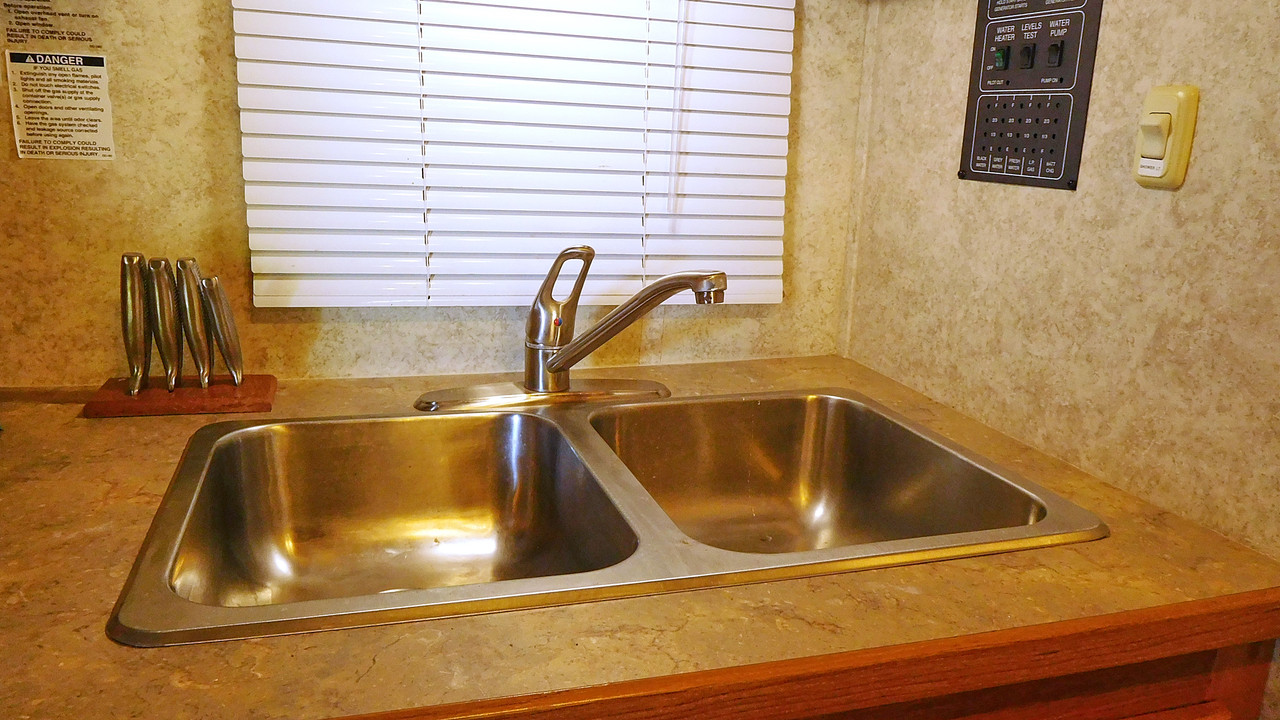

Hi John, I've never noticed this thread until now. I'll contribute. The first change I would like to show is that I changed out the galley sink faucet from the low and rigid old school style to a higher home version with a spray stream button and flexible pull out sprayer. Soooo much better!
__________________
2005 22' BT Cruiser 5211, Chev. 6.0L; 2015 6'x12' EZ Loader Duralite Aluminum Cargo Trailer; 2015 Honda CB500X motorcycle for street and ADV riding; 2004 Yamaha TW200 motorcycle for dual-sport and trail riding...All of it for fun and adventure!
I live for this!...YouTube @https://www.youtube.com/LeisureTimeLarry & Instagram @https://www.instagram.com/leisuretimelarry
Leisure Time Larry is offline   Reply With Quote
Old 03-29-2020, 12:03 AM   #6
Leisure Time Larry
Member

Leisure Time Larry's Avatar

Join Date: Nov 2017
Posts: 68
Default

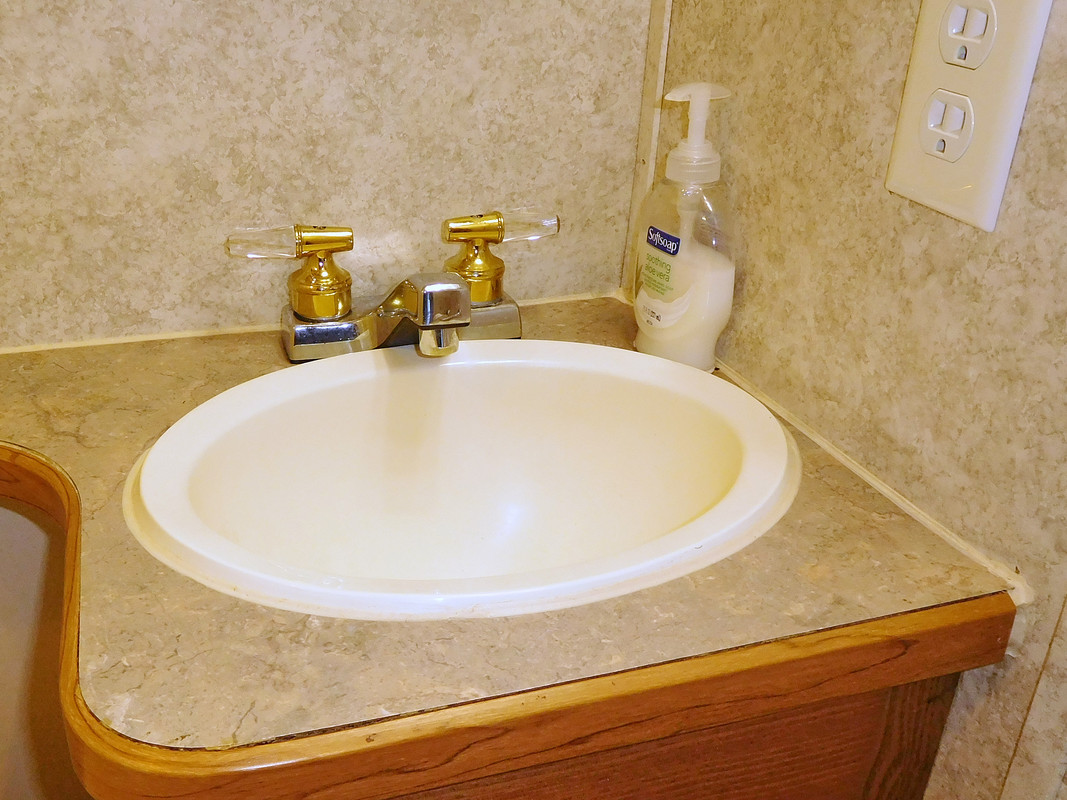

Next, I also had to change out the bathroom sink faucet. Once again the new one is taller to make it easier to wash up, and it looks so much better than the original.

__________________
2005 22' BT Cruiser 5211, Chev. 6.0L; 2015 6'x12' EZ Loader Duralite Aluminum Cargo Trailer; 2015 Honda CB500X motorcycle for street and ADV riding; 2004 Yamaha TW200 motorcycle for dual-sport and trail riding...All of it for fun and adventure!
I live for this!...YouTube @https://www.youtube.com/LeisureTimeLarry & Instagram @https://www.instagram.com/leisuretimelarry
Leisure Time Larry is offline   Reply With Quote
Old 03-29-2020, 12:23 AM   #7
Leisure Time Larry
Member

Leisure Time Larry's Avatar

Join Date: Nov 2017
Posts: 68
Default

My 2005 model year unit came with a old 19 inch CRT television built into the front cabinetry. I wanted more. I removed the heavy tube unit. I added a cheap moving blanket up in the nose cap to add a barrier to the insulation. A couple of strips of oak span the opening and are screwed in. I used a MORryde TV1-021H articulating extending tilt and swivel television mount, bolted to the oak. It is a 43 inch widescreen Roku television. I also mounted a Yamaha sound bar underneath. What an upgraded viewing experience!




Mount:

__________________
2005 22' BT Cruiser 5211, Chev. 6.0L; 2015 6'x12' EZ Loader Duralite Aluminum Cargo Trailer; 2015 Honda CB500X motorcycle for street and ADV riding; 2004 Yamaha TW200 motorcycle for dual-sport and trail riding...All of it for fun and adventure!
I live for this!...YouTube @https://www.youtube.com/LeisureTimeLarry & Instagram @https://www.instagram.com/leisuretimelarry
Leisure Time Larry is offline   Reply With Quote
Old 03-30-2020, 09:23 PM   #8
Colorado350
Senior Member

Colorado350's Avatar

Join Date: Oct 2019
Posts: 102
Default

Hey Larry, it looks great!
__________________
John
The sheep always complain about the Sheepdogs UNTIL the Wolves show up then they beg for help!
Colorado350 is offline   Reply With Quote
Old 03-31-2020, 10:53 PM   #9
Frutza
Senior Member

Frutza's Avatar

Join Date: Nov 2012
Posts: 281
Default

John, I didn't see this before neither, nice work both of you guys, glad to see I'm not the only one that can't leave things alone!
__________________
Mike & Becky
2005 Crescendo 8356
Frutza is offline   Reply With Quote
Old 04-02-2020, 09:24 PM   #10
Colorado350
Senior Member

Colorado350's Avatar

Join Date: Oct 2019
Posts: 102
Default

Started with the frame extensions to mount a foldable rack on the back. I used 2 separate pieces of 1/4 angle iron and a piece of female receiver. These were welded together then mounted to the frame of the camper. The rack will be removable and foldable when complete. The pictures give you a taste of what the mock up looks like...
Attached Images
File Type: jpg C4F1C9F9-21A4-434E-A640-231505D3A605.jpg (70.3 KB, 0 views)
File Type: jpeg 2367F2A3-972F-4BFF-91A8-BFE9D6EC0CF7.jpeg (367.1 KB, 0 views)
__________________
John
The sheep always complain about the Sheepdogs UNTIL the Wolves show up then they beg for help!
Colorado350 is offline   Reply With Quote
Old 05-22-2020, 09:28 PM   #11
Colorado350
Senior Member

Colorado350's Avatar

Join Date: Oct 2019
Posts: 102
Default

Well, I finished the rack on my 5er last week. It folds up, is completely removable. I also added a receiver to the frame so I can flat tow my Jeep behind it. Heres a couple pictures.
__________________
John
The sheep always complain about the Sheepdogs UNTIL the Wolves show up then they beg for help!
Colorado350 is offline   Reply With Quote
Old 08-30-2020, 07:32 PM   #12
Colorado350
Senior Member

Colorado350's Avatar

Join Date: Oct 2019
Posts: 102
Default

I added a 40 gallon fresh water tank to it. It sits in front of the front axle so the majority of the weight will be pin weight. I ran the 1/2 Pex through 3/4 plastic electrical conduit to protect and provide some insulation.
__________________
John
The sheep always complain about the Sheepdogs UNTIL the Wolves show up then they beg for help!
Colorado350 is offline   Reply With Quote
Old 09-21-2020, 09:22 AM   #13
TonyQ
New Member

Join Date: Sep 2020
Posts: 23
Default

Made a sink cover out of scrap pallets, need to make a stove cover too and in the process of reinforcing the dinette seats and adding struts to make them a little less awkward to open and close. Also upgraded from a single 20 lbs propane tank to a double 20s with an auto change over. Also turned the head on the power jack stand, which makes it so we can now open the liftgate of our SUV with the trailer attached, wasnt enough clearance previously. Ill post more pics when I have finished. Im still new to all this.
TonyQ is offline   Reply With Quote
Old 09-22-2020, 07:54 PM   #14
Colorado350
Senior Member

Colorado350's Avatar

Join Date: Oct 2019
Posts: 102
Default

Looks great Tony!
__________________
John
The sheep always complain about the Sheepdogs UNTIL the Wolves show up then they beg for help!
Colorado350 is offline   Reply With Quote
